Asphalt plant is intended for the production of asphalt mixtures, which will be located as layers of roads, highways, etc.
ZZEM stable asphalt mixing plant tower type have three series on sale: ABZ (popular version, module type), AMP (with lower bins, have high-level version), BMP (economic version, with side bins), all produce asphalt not just ordinary mixes, like fine-grained AC13.AC16, medium-grained AC16. AC20, coarse-grained AC30, but also suitable for the production of SMA.
The Asphalt batch mixing plant tower type series ABZ adopts a modular structure, with a steel base integrated under the tower, which can be quickly and conveniently coiled and disassembled. Nowadays widely used in the construction projects domain and abroad.
Module type Asphalt batch mixing plant series ABZ
Mix various specifications of aggregates (sand, stone), binders (asphalt or residual oil), and fillers (mineral powder) in a certain proportion to form asphalt mixture, which is then molded into concrete slabs. Asphalt plant is intended for the production of asphalt mixtures, which will be located as layers of roads, highways, etc.
ZZEM stable asphalt mixing plant tower type have three series on sale: ABZ (popular version, module type), AMP (with lower bins, have high-level version), BMP (economic version, with side bins), all produce asphalt not just ordinary mixes, like fine-grained AC13.AC16, medium-grained AC16. AC20, coarse-grained AC30, but also suitable for the production of SMA.
The Asphalt batch mixing plant tower type series ABZ adopts a modular structure, with a steel base integrated under the tower, which can be quickly and conveniently coiled and disassembled. Nowadays widely used in the construction projects domain and abroad.
Product Features of tower type asphalt batch mixing plant series ABZ
1.The whole equipment is equipped with steel frame foundation for easy transportation and installation.
2. Modular design, all parts can be loaded into container which greatly reduces the transportation cost.

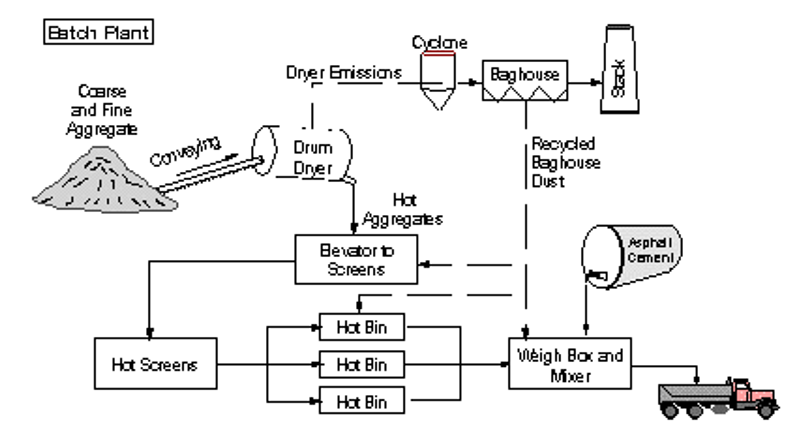

WORKING FLOW OF PRODUCING ASPHALT MIXTURE

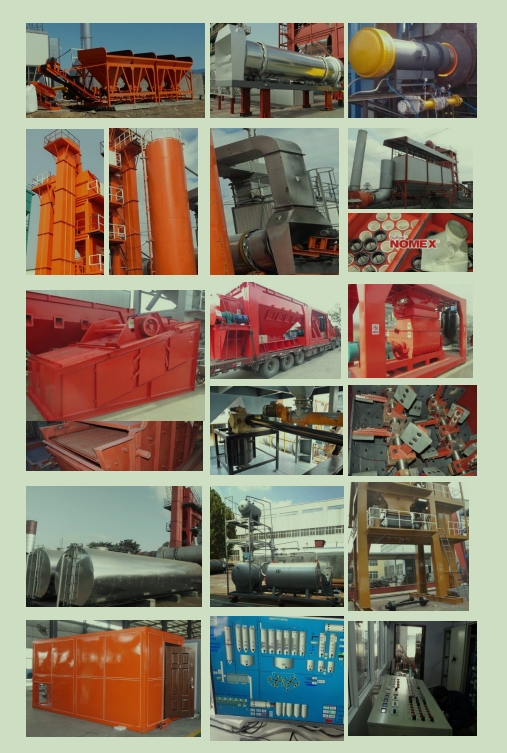

Configuration of tower container type asphalt batch mixing plant series ABZ
 | The whole configuration of Asphalt plant ABZ is consisted by the following parts: 1. Cold aggregate supply system 2. Tilted belt feeding system 3. Drying drum 4. Burning system 5. Dust filter system 6. Hot aggregate elevator 7. Vibrator 8. Hot bins 9. Scale system 10. Twin shaft mixer 11. Electric and pneumatic PLC Central control system 12. Bitumen tanks and asphalt supply system 13. Thermal oil heater 14. Mineral powder silos and elevator |
Tower container type stationary asphalt mixing plant series ABZ
