Asphalt batch mix plant with Side bins type BMP

Product information

Detailed information

Stationary Asphalt batch mixing plant tower type series BMP have side placed finished mixture bins, the finished materials are discharged from the discharge door of the mixer and transported by the material transport cart to the finished product warehouse for temporary storage. The transportation of finished materials is driven by a winch and a track car, which is relatively easy to operate. Moreover, the storage capacity of the finished product warehouse is relatively large, which can store more asphalt materials in 24 hours and is suitable for working conditions that require a large amount of storage.

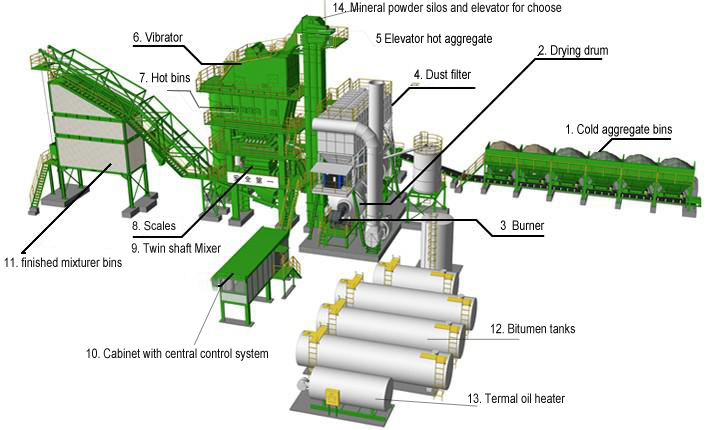

Tower type Stationary Asphalt Batch Mixing Plant with side mounted finished mixture bins series BMP

Mix various specifications of aggregates (sand, stone), binders (asphalt or residual oil), and fillers (mineral powder) in a certain proportion to form asphalt mixture, which is then molded into concrete slabs. Tower type Asphalt batch mixing plants are designed for the production of asphalt mixtures, which will be laid in layers for highways, expressways, etc.

ZZEM Stationary Asphalt batch mixing plant tower type has three series for client choose: ABZ (modular structural type, popular vision), AMP (with bottom mounted bins of finished mixture), BMP (with side mounted separate bins of finished mixture), all of which produce asphalt mixture, including ordinary asphalt mixtures such as fine-grained asphalt mixture AC13-AC16, medium grained asphalt mixture AC16-AC20, and coarse-grained asphalt AC30, especially SMA mixture (Stone Matrix Asphalt).
