Asphalt plant is intended for the production of asphalt mixtures, which will be located as layers of roads, highways, etc.
ZZEM stable asphalt mixing plant tower type have three series on sale: ABZ (popular version, module type), AMP (with lower bins, have high-level version), BMP (economic version, with side bins), all produce asphalt not just ordinary mixes, like fine-grained AC13.AC16, medium-grained AC16. AC20, coarse-grained AC30, but also suitable for the production of SMA.
The design of the side mounted finished mixture warehouse results in a relatively small equipment footprint, making it suitable for occasions with limited space. It also has a relatively stable structure and reliable equipment performance, making it suitable for situations that require stable performance.

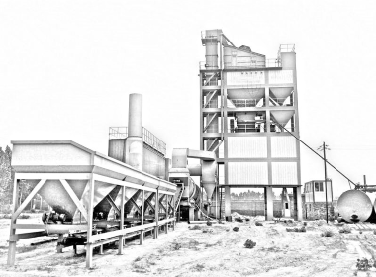

Tower type Stationary Asphalt Batch Mixing Plant with bottom mounted finished mixture bins series AMP
Mix various specifications of aggregates (sand, stone), binders (asphalt or residual oil), and fillers (mineral powder) in a certain proportion to form asphalt mixture, which is then molded into concrete slabs. Tower type Asphalt batch mixing plants are designed for the production of asphalt mixtures, which will be laid in layers for highways, expressways, etc.
ZZEM Stationary Asphalt batch mixing plant tower type has three series for client choose: ABZ (modular structural type, popular vision), AMP (with bottom mounted bins of finished mixture), BMP (with side mounted separate bins of finished mixture), all of which produce asphalt mixture, including ordinary asphalt mixtures such as fine-grained asphalt mixture AC13-AC16, medium grained asphalt mixture AC16-AC20, and coarse-grained asphalt AC30, especially SMA mixture (Stone Matrix Asphalt).
The advantages of the bottom mounted finished product warehouse in asphalt plant series AMP mainly include the following aspects:
1. Small footprint: The design of the side mounted finished product warehouse results in a relatively small equipment footprint, making it suitable for occasions with limited space.
2. Stable performance: The side mounted finished product warehouse has a relatively stable structure and reliable equipment performance, making it suitable for situations that require stable performance.
These advantages make the asphalt station side mounted finished product warehouse have significant advantages in specific situations, especially under limited site conditions, where its application effect is particularly prominent.
Configuration of Stationary Asphalt Batch Mixing Plant series AMP
The whole configuration of Asphalt plant AMP is consisted by the following parts:
|
1. Cold aggregate supply system 2. Tilted belt feeding system 3. Drying drum 4. Burning system 5. Dust filter system 6. Hot aggregate elevator 7. Vibrator 8. Hot bins 9. Scale system 10. Twin shaft mixer 11. Bottom placed finished mixture bins 12. Bitumen tanks and asphalt supply system 13. Thermal oil heater 14. Mineral powder silos and elevator 15. Electric and pneumatic PLC Central control system |

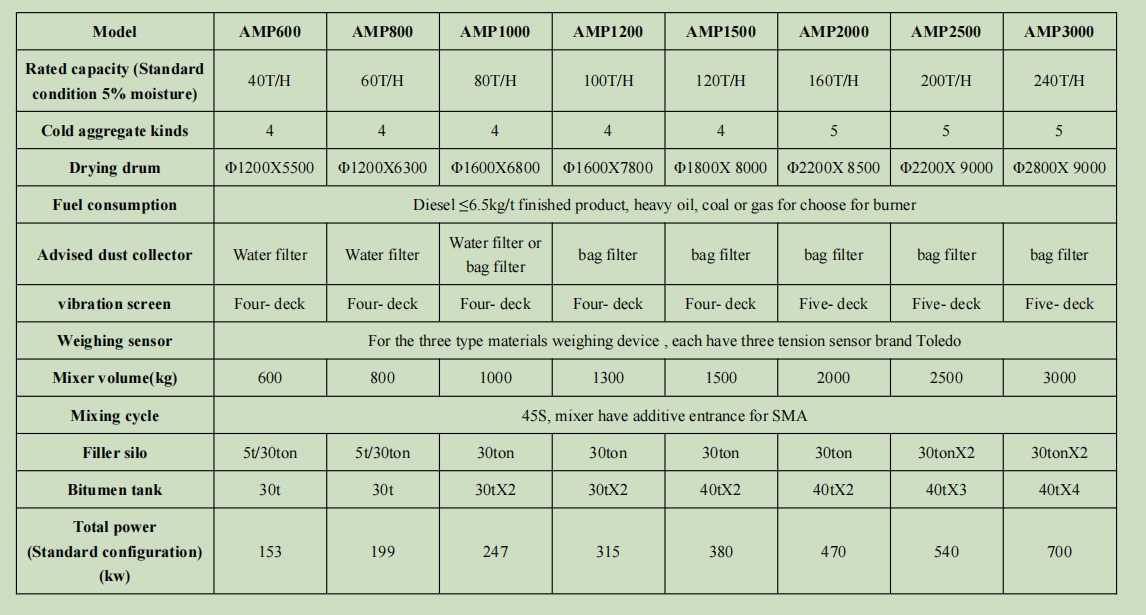

Specification of Tower type Stationary Asphalt Mixing Plant series AMP

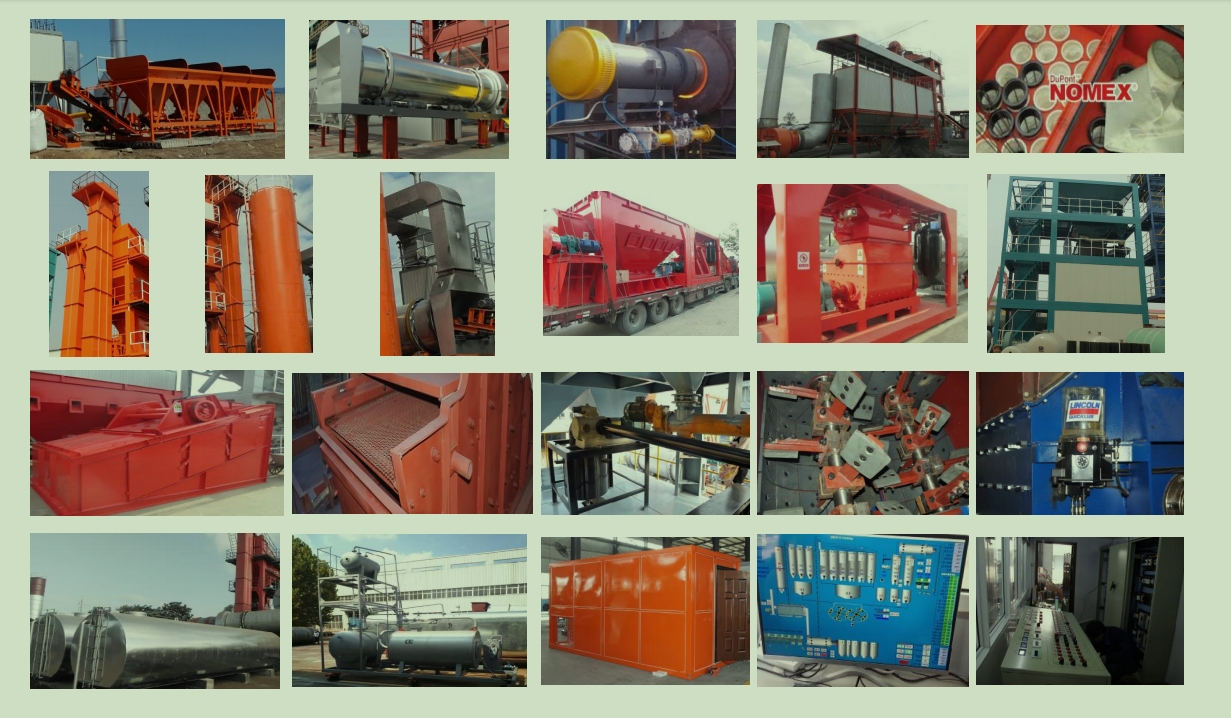

Configuration of Asphalt mixing plant Display
